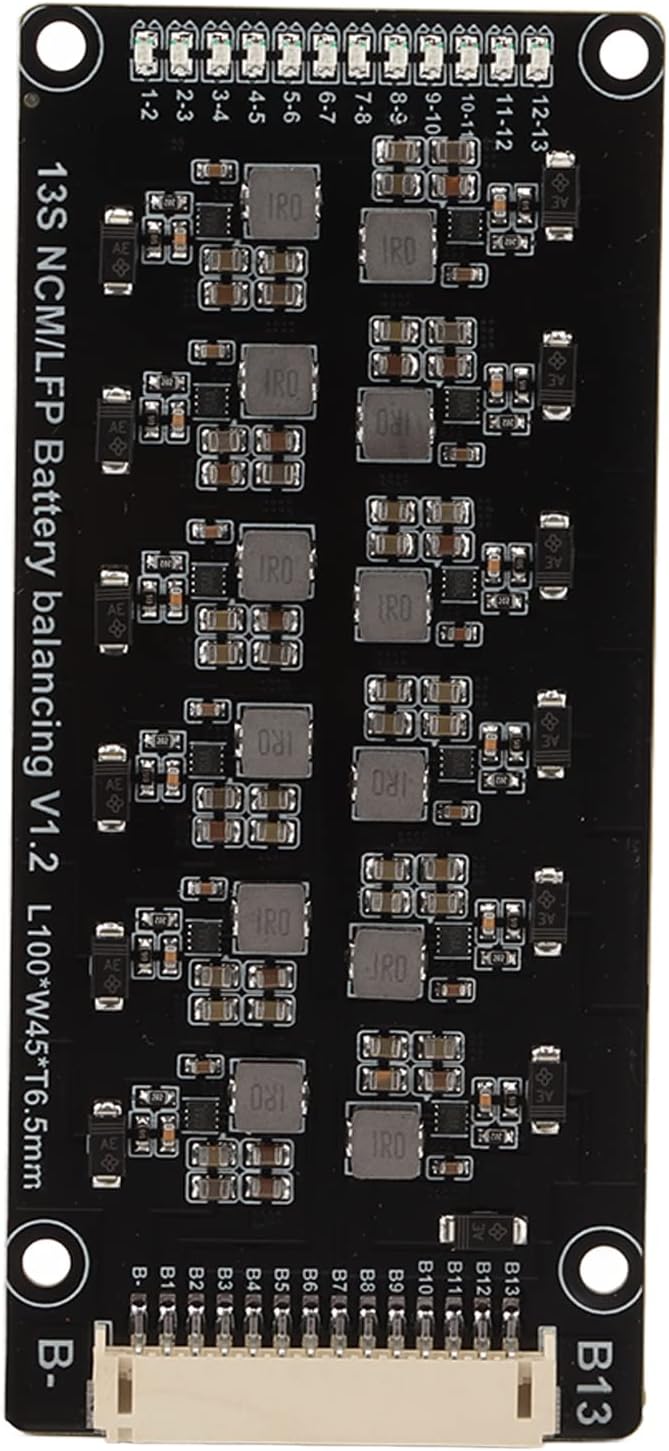

Kadimendium Battery Active Equalizer 13S 1 2A Inductive Active Equalizer Balancer High Battery Energy Transfer Board Lithium Battery Balance Module for Battery System Solar Power

Specification : Material : PCB Harness Specification : 22AWG Technical Parameter : Working Voltage : 2 . 0 4 . 5V , universal for ternary iron lithium battery , not suitable for LTO lithium titanate battery Balance Current : Adjacent voltage difference more than 0 . 1V , the current is about 0 . 5 0 . 7A Adjacent voltage difference more than 0 . 2V , the maximum equilibrium current is 1 . 2A The smaller the voltage difference , the smaller the equalizing current Wiring Definition : B , the total negative pole of the battery pack (the negative pole of the first battery) B1 , the positive pole of the first battery B2 , the positive pole of the second battery B3 , the positive pole of the third battery B4 , the positive pole of the fourth battery B5 , the positive pole of fifth battery B6 , the positive pole of the sixth battery B7 , the positive pole of the seventh battery B8 , the positive pole of the eighth battery B9 , the positive pole of the ninth battery B10 , the positive pole of the tenth battery B11 , the positive pole of the eleventh battery B12 , the positive pole of the battery B13 , the positive pole of the thirteenth battery Package List : 1 x Battery Active Equalizer1 x Cable Note : 1 . Because of the working principle of adjacent equalization , it cannot be used as a maintenance tool . 2 . It need to connect the battery and used together with lithium battery . 3 . The pressure difference generated by charging and discharging the work of the equalizing plate to realize energy transfer and equalization .

• 13s battery equalizer: the equalizer has 13 serial ports, the working voltage is 2.0v‑4.5v, and is generally used for ternary iron batteries. not suitable for lto titanate battery
• High current: inductive energy transfer equalization board with high current of 1.2a, significantly the battery voltage and improves the overall efficiency of the battery pack.
• Principle: starts when the voltage difference between adjacent batteries is more than 0.1v, and stops until the voltage difference is within 0.03v. equalizer provides work, the battery pack voltage error will be pulled back to an value, reducing battery maintenance costs
• Intelligent: reverse polarity, low voltage disconnect to keep batteries in heath condition and extend battery service life.
• Low internal resistance mos: built in improved low internal resistance mos, the current is 0‑1.2a, and the battery voltage difference is smaller. use the internal energy transfer of the battery to transfer and the entire battery pack
